Coleman Creek Fish Access
|
Kittitas Co Conservation Dist; Coleman Creek Fish Access (#02-1494)
01/27/2005, Attachment #13628, New Bridge Over Coleman Creek
|
|
|
|
|
This project addresses an unscreened surface water diversion, fish passage barrier and uncontrolled intersection of a canal and a creek. Major tasks include the installation of fish screen and passage structures, removal of a perched culvert and installation of control structures for the canal.
The project is on Coleman Creek, a tributary to Wilson Creek in Kittitas County. The site is approximately 3.3 stream miles from the Yakima River. The diversion structure is the first of many that currently block access to miles of habitat. The installation of screening and passage facilities will occur in cooperation with improved on-farm irrigation systems for the landowner and corrections of all other uncontrolled intersections for the canal.
The Kittitas County Conservation District is sponsoring this project as part of the Yakima Tributary Access and Habitat Program (YTAHP). YTAHP was conceived by a consortium of local irrigation and conservation districts, as well as WDFW. The Bonneville Power Administration (BPA) awarded the YTAHP core team $2.2 million (FY02-FY04). This funding will provide the staff and other infrastructures neccessary to address hundreds of fish screen and passage projects on tributaries of the Yakima River. This site and 10 others in Kittitas and Yakima County were identified as "early action". This project is an exceptional opportunity to take advantage of the resources and expertise provided through the YTAHP and complement related projects.
|
|
General Area:
|
|
Southeast of Ellensburg
|
|
Waterbody:
|
|
Coleman Creek, Naneum Creek
|
|
County:
|
|
Kittitas
|
|
Legislative District:
|
|
13
|
|
Congressional District 2022:
|
|
08
|
|
Salmon Recovery Regions:
|
|
Middle Columbia River
|
|
Watershed Administrative Unit:
|
|
Yakima River/Naneum Creek
|
|
HUC8:
|
|
Upper Yakima (17030001)
|
|
WRIA:
|
|
Upper Yakima
|
|
Sections:
|
|
20
|
|
Township:
|
|
T17NR19E
|
|

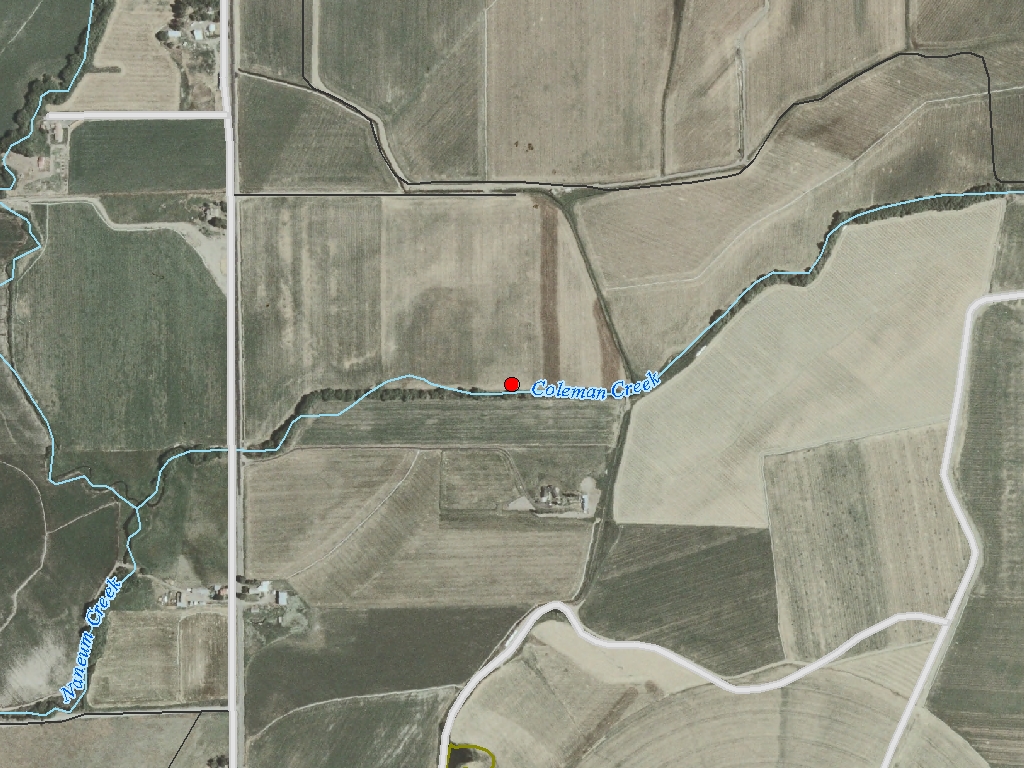

Coordinates:
|
|
46.94911937
-120.49228046
|
|
|
| Worksite Name | Scope of Work | Actual Restoration Cost |
|
Coleman Creek Fish Access (#1)
|
Architectural & Engineering (A&E), Bridge installed or improved (C.2.g.1), Channel structure placement (C.4.d.1), Fish passage blockages removed or altered (C.2.c.1), Fish screens installed (C.1.c.1), Spawning gravel placement (C.4.f.1), Streambank stabilization (C.4.e.1)
|
$99,353
|
| | Total | $99,353 |
Amounts may not be complete
| Worksite Name | | Property Name | Landowner Type |
|
Coleman Creek Fish Access (#1)
|
|
Property 1 - Property - Worksite #1
|
Private
|
| | | | Total |
Amounts may not be complete
| | Category / Work Type / Metric | Final |
Restoration Metrics (rolled up from Worksite level) |
Fish Screening Project |
| Fish screens installed (C.1.c.1) |
|
|
Number Of Fish Screens Installed (C.1.c.2)
|
1
|
|
|
The Flow Rate Of Screened Water (C.1.c.3)
|
1.50
|
Fish Passage Improvement |
| Fish passage blockages removed or altered (C.2.c.1) |
|
|
Number of Blockages/Impediments/Barriers Removed/Altered (C.2.c.2)
|
1
|
Instream Habitat Project |
| Channel structure placement (C.4.d.1) |
|
|
Miles of Stream Treated for channel structure placement (C.4.d.3)
|
0.05
|
|
|
Acres Of Streambed Treated for channel structure placement (C.4.d.4)
|
0.1
|
|
|
Pools Created through channel structure placement (C.4.d.5)
|
2
|
|
|
Number of structures placed in channel (C.4.d.7)
|
3
|
| Streambank stabilization (C.4.e.1) |
|
|
Miles of Streambank Stabilized (C.4.e.3)
|
0.05
|
| Spawning gravel placement (C.4.f.1) |
|
|
Miles of Stream Treated with spawning gravel placement (C.4.f.2)
|
0.03
|
|
|
Cubic Yards of spawning gravel placed (C.4.f.3)
|
50
|
Fish Passage Improvement |
| Bridge installed or improved (C.2.g.1) |
|
|
Miles of stream made accessible by bridge installation/repair (C.2.g.3)
|
0.50
|
|
|
Number of bridges (C.2.g.2)
|
1
|
| |
|
|
Number of blockages / impediments / barriers impeding passage (C.2.b.4)
|
1
|
| Milestone Name | Target Date | Description |
|
Project Start
|
05/02/2003
|
|
|
Applied for Permits
|
02/01/2004
|
|
|
A&E Plans Submitted
|
02/01/2004
|
|
|
Monitor/Steward Plan Submitted
|
09/01/2004
|
With first invoice.
|
|
Bid Awarded/Consultant Hired
|
01/30/2005
|
|
|
Construction Started
|
02/01/2005
|
|
|
Construction Complete
|
03/30/2005
|
|
|
Monitoring Started
|
04/01/2005
|
|
|
Monitoring Complete
|
04/30/2005
|
|
|
Agreement End Date
|
04/30/2005
|
|
|
Final Docs/Billing to Mgmt Agy
|
06/30/2005
|
|
