Washington State Recreation and Conservation Office
Project Snapshot
PRISM Project #04-1035 (Completed)
Eason - Frye Cove Creek
    Project Details
South Puget Sound SEG; Eason - Frye Cove Creek (#04-1035)

Attachment #7589, Pool below culvert
South Puget Sound SEG; Eason - Frye Cove Creek (#04-1035) Attachment #7589, Pool below culvert

South Puget Sound SEG; Eason - Frye Cove Creek (#04-1035)

Attachment #7589, Pool below culvert South Puget Sound SEG; Eason - Frye Cove Creek (#04-1035)

09/29/2004, Attachment #11712, Final Inspection Downstream end
Project Status:  Closed Completed since 04/06/2005

Project Type:  Restoration
Project Sponsor:  South Puget Sound Salmon Enhancement Group
Funding Board:  Recreation and Conservation Office
              Funding
FFFPP Grants: $99,380
Total RCO Grant: $99,380 (100%)
Total Agreement: $99,380 (100%)
              Links


    Project Description
This salmon enhancement project is located on a small independent tributary to Frye Cove in Thurston County. Frye Cove Creek enters Eld Inlet and is about 2000m long. The proposed culvert project is about 300m upstream of the estuary. This watershed provides habitat for coastal cutthroat, coho, chum, and resident trout. This project will provide improved access to over 1700m of habitat.



The wetland headwaters for Frye Cove Creek has recently been protected by a landowner conservation easement prepared by Capital Land Trust. Half of the estuary is protected by Frye Cove Park (Thurston County) and the other half of the estuary is protected by one landowner.



The existing 4' culvert was seriously damaged during a significant flooding event in the mid 1990's. The outlet was crushed and became a total barrier for all species of fish. During stream surveys, SPSSEG field crews identified carcasses downstream but did not observe any fish upstream. During landowner interviews, SPSSEG did talk to several landowners who claimed to see salmon several years prior to the culvert being damaged.



This project will remove a significant fish barrier low in the watershed. A low maintenance culvert will be installed using a WDFW stream simulation model design. This proposed 12' diameter culvert will be large enough to pass high water flows and anticipated debris. The correction of this culvert will provide natural stream function at this site low in the watershed.


    Project Contacts

Project Sponsor: South Puget Sound Salmon Enhancement Group Lead Entity: Kennedy-Goldsborough (WRIA 14) Salmon Recovery Lead Entity
  Project Contact: Lance Winecka
lancew@spsseg.org
(360) 951-2129


Funding Agency: Recreation and Conservation Office
  Project Manager: Tara Galuska
tara.galuska@rco.wa.gov

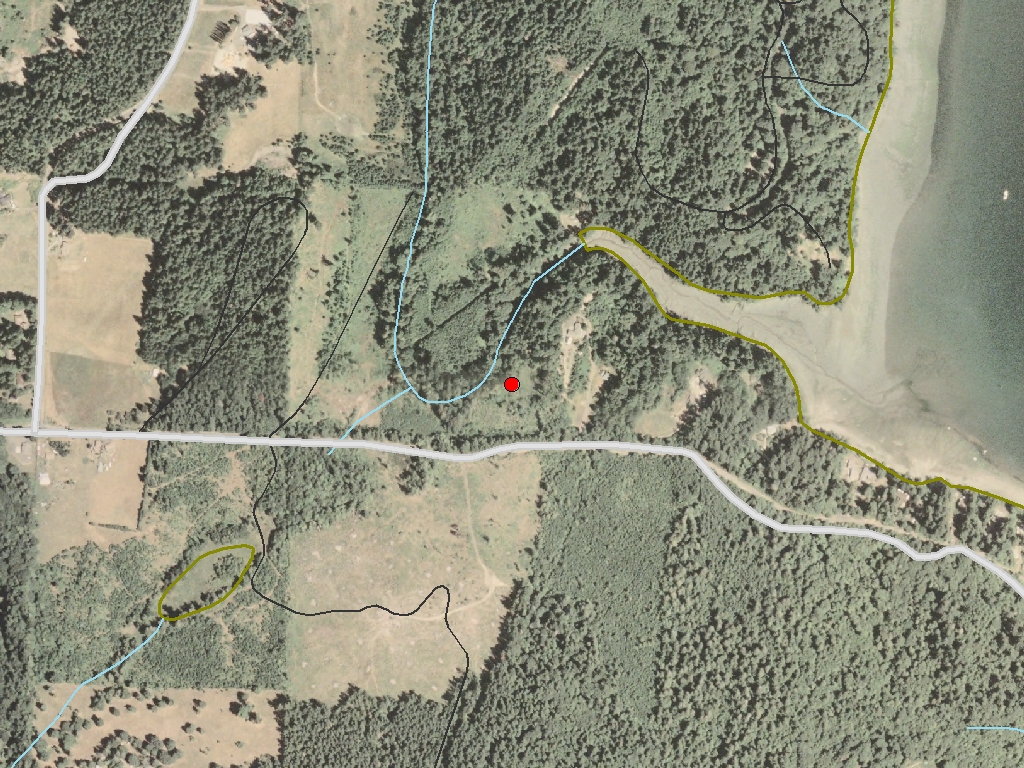

    Project Location
General Area:   West of Olympia
Waterbody:   Unnamed
County:   Thurston
Legislative District:   35
Congressional District 2022:   10
Salmon Recovery Regions:   Puget Sound
Watershed Administrative Unit:   Young Cove
HUC8:   Puget Sound (17110019)
WRIA:   Kennedy - Goldsborough
Sections:   19
Township:   T19NR02W
Coordinates:   47.11329231
-122.97130120

    Worksites
Worksite NameScope of WorkActual Restoration Cost
Frye Creek Cove (#1) Architectural & Engineering (A&E), Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1), Restored land maintained (C.11.c.1), Road-crossing removal (C.2.i.1) $10,484
 Total$10,484
Amounts may not be complete

    Properties
Worksite Name Property NameLandowner Type
Frye Creek Cove (#1)   Property 1 - Property - Worksite #1 Private
   Total
Amounts may not be complete

    Project Metrics (Outcomes, Benefits)
 Category / Work Type / MetricFinal

Restoration Metrics (rolled up from Worksite level)

Fish Passage Improvement
      Fish passage blockages removed or altered (C.2.c.1)
Number of Blockages/Impediments/Barriers Removed/Altered (C.2.c.2) 1
      Culvert installed or improved (C.2.f.1)
Miles of stream made accessible by culvert installation/repair (C.2.f.3) 1.25
Number of culverts (C.2.f.2) 1

Number of blockages / impediments / barriers impeding passage (C.2.b.4) 1

    Project Permits
Permit TypeApplied
Date
Received
Date
Expiration
Date
Permit Number
Forest Practices Application [Forest & Fish]
Hydraulics Project Approval [HPA]

    Project Milestones
Milestone NameTarget DateDescription
Project Start 04/04/2004
Data Design Forms Submitted 06/28/2004
Applied for Permits 06/28/2004
30% Design Review/Cost Check 06/28/2004
Bid Awarded/Contractor Hired 07/16/2004
Construction Started 08/16/2004
Construction Complete 08/31/2004
Agreement End Date 12/31/2004
Final Docs/Billing to Mgmt Agy 12/31/2004


    Project Attachments
Attachment TypeAttachment TitleAttach Date
Agreement - State FFFPP Agreement - 2 pgs..pdf 05/17/2007
Amendment request Frye Cove Creek Cost Adjustment #2.pdf 03/03/2005
Inspection Photos Final Inspection Downstream end.jpg 09/29/2004
Inspection Photos Final Inspection Road 2.jpg 09/29/2004
Landowner application Eason application.pdf 07/06/2004
Map: Site Location Map - site and regional location .jpg 02/03/2004
Photo Frye Cove 7.jpg 12/20/2004
Photo Frye Cove 2.jpg 12/20/2004
Photo Frye Cove 1.jpg 12/20/2004
Photo Frye Cove 5.jpg 12/20/2004
Photo Upstream end.jpg 09/29/2004
Photo Final Inspection Road.jpg 09/29/2004
Photo Pool below culvert.jpg 05/10/2004
Photo Culvert outlet.jpg 05/10/2004
Photo Road View.jpg 05/10/2004
Photo Inside pipe crushed.jpg 02/03/2004
Photo Road.jpg 02/03/2004
Photo Downstream end.jpg 02/03/2004
Site Plan: Restoration Site Plan 04-1035 Frye Ck. Culvert Replacement Project 7-1-04.pdf 12/20/2004
Sponsor final report Frye Cove Final Report.pdf 12/20/2004
Watershed map WDFW Watershed Map WDFW.pdf 03/17/2004
Watershed map WDFW Site Map WDFW.pdf 03/17/2004
Watershed map WDFW 04-1035 WRIA 14.jpg 03/17/2004
WDFW barrier & screening forms BEF.pdf 03/25/2004
WDFW barrier & screening forms Frye Cove EBEF.pdf 03/25/2004
